Monday, July 5, 2021

#SQLServer: There's Something About SQLOS Memory Node Free Memory on NUMA systems...

In 2018 I wrote two blog posts about memory accounting behavior on NUMA servers I was seeing in SQL Server 2016, 2017, and eventually 2019.

Some amount of memory counted by a SQLOS memory node as [Stolen Memory] was *also* counted by another SQLOS memory node as [Database cache].

SQL Server 2016 Memory Accounting: A Suspicious Surprise
2018 July 2
https://sql-sasquatch.blogspot.com/2018/07/sql-server-2016-memory-accounting.html

SQL Server 2016 Memory Accounting Part II: Another Suspicious Example
https://sql-sasquatch.blogspot.com/2018/10/sql-server-2016-memory-accounting-part.html
2018 October 25

At first I thought it likely to be a reporting error only - something that made the numbers not tie out unless it was taken into consideration.

Maybe such a condition could exist without bubbling up as a performance degradation or error situation?

As I continued to observe the issue, however, I took note of the ways this double-counting of memory could result in performance drag or errors.  I won't detail that here, but it is worth noting that KB4536005, which resolved this condition, lists out of memory errors as a potential consequence of this accounting error.

#SQLServer 2019 CU2
#SQLServer 2017 CU20
#SQLServer 2016 SP2 CU15
KB4536005 - FIX: Fix incorrect memory page accounting that causes out-of-memory errors in SQL Server


At about the same time as noticing that some memory was double-counted among the SQLOS nodes, I noticed something else.  Occasionally, one or more SQLOS memory nodes would report an outlandishly high number as the free SQLOS memory on that node.  The number was obvious nonsense as it was higher than the amount of vRAM available to the vm.

I rationalized this as probably the result of a race condition at a time of low free memory - values for two memory measures reported at slightly different times yielding a negative number which came through the performance object as an absurdly high positive number.  Because there were other memory issues to chase after, I was satisfied with the answer I provided myself, and willing to believe the condition could exist without any appreciable effect on performance or errors.

It's a few years later now and... uh... I no longer believe that.

I've seen cases where that ridiculously high SQLOS node free memory values are reported on the same SQLOS node every 30 seconds for two straight hours.  I've seen cases where two of four SQLOS nodes are reporting the absurd high values at the same time.  Nope, doesn't fit the profile of benign race condition anymore.  Maybe I could just let it go if one of the SQL Server instances where this occurs doesn't also have active investigation for frequent buffer latch timeouts and for SQL Server seemingly failing to respond to low memory conditions.

OK, so I have to dig in.

In this post I will stray from my typical, graph heavy presentation. This one works better as tables, because the free memory involved is so doggone small compared to database cache and stolen memory it's really hard to find on the graph.

All of the tables below are from a single system, running SQL Server 2019 cu9. Perfmon is capturing lots of counters every 30 seconds.

First we'll look at instance-wide numbers from [\SQLServer:Memory Manager].

[Total Server Memory (KB)] is in column 2, with a purple header.
[Database Cache Memory (KB)] is in column 3 with a light blue header.
[Stolen Server Memory (KB)] is in column 4, also with a light blue header.

Column 5, [Calculated Free Kb] has a light pink header. It is the result of this calculation in each interval:
[Total Server Memory (KB)] - [Database Cache Memory (KB)] - [Stolen Server Memory (KB)]

Column 6 [Free Memory (KB)] has an orange header. Notice below that it always has the same value as the preceding column, my calculated free memory.

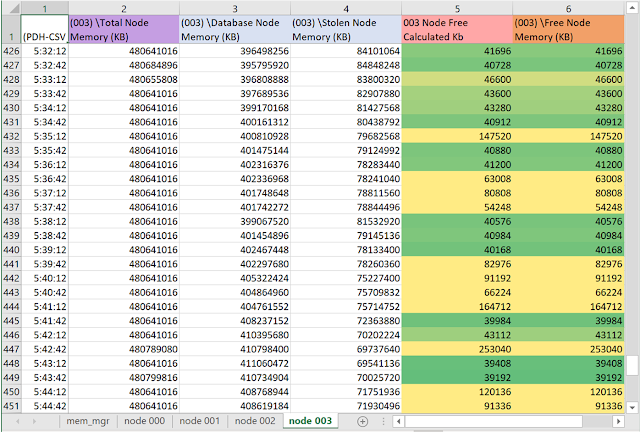

I expect to see the same relationship at the SQLOS memory node level, as we look at [\SQLServer:Memory Node(*)] counters.  Indeed in each of the tables below this calculation for the memory node holds true, as the similar calculation holds true for the memory manager:

[\SQLServer:Memory Node(*)\Total Node Memory (KB)]
- [\SQLServer:Memory Node(*)\Database Node Memory (KB)]
- [\SQLServer:Memory Node(*)\Stolen Node Memory (KB)]
= [\SQLServer:Memory Node(*)\Free Node Memory (KB)]




When I showed the tables above to my colleagues, they were onto me right away. "Where is node 002?"

Well... yeah. Node 002 looks a little different.  I've only seen three distinct absurd [Free Node Memory (KB)] values so far: 18446744073709300000, 18446744073709400000, 18446744073709500000.



Considering that each of the 4 vNUMA nodes on this system has 640,000 mb vRAM, maybe the lowest value above of -154608 kb doesn't seem like it could cause that much trouble. That's about -150 mb.  And of course free memory can't really be negative. So there's a memory accounting error of at least 150 mb. How bad could that be?

Well... low memory condition signal is when less than 200 mb available memory, right?
In some cases, a memory accounting error of 150 mb could defintely cause trouble. Even on a system with a massive amount of memory.
